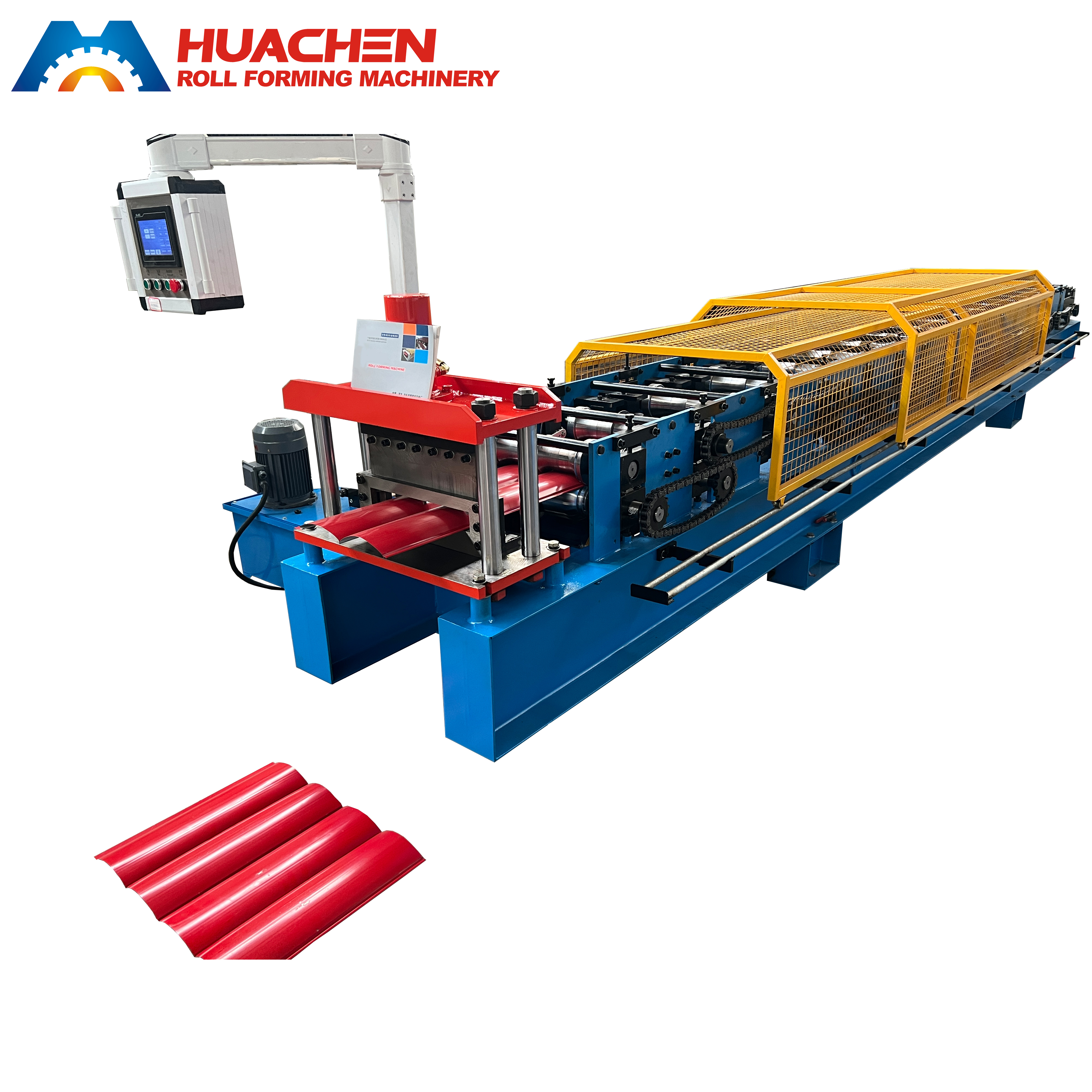

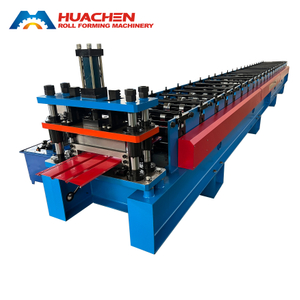

Main Technical Parameters
Material | Type | PPGI/GI |
Thickness | 0.3-0.6mm |
Roller Stations | 16Stations |
Roller & Shaft Material | 45# Steel Quenching and Plating |
Diameter of Shaft | Φ70mm |
Cutter Material | CR12 |
Drive Type | Chain Drive |
Speed | 15m/min |
Total Power | 4+4KW |
Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 3T
Inner diameter: 470-530mm
(adjustable according to demand)
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
