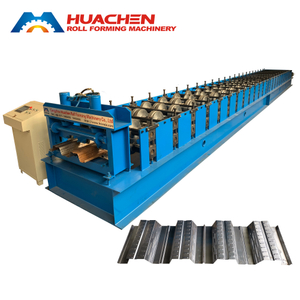

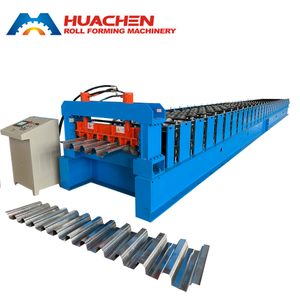

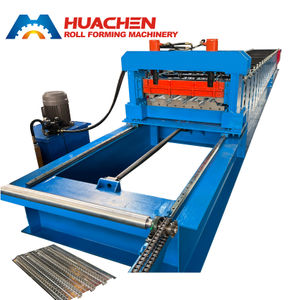

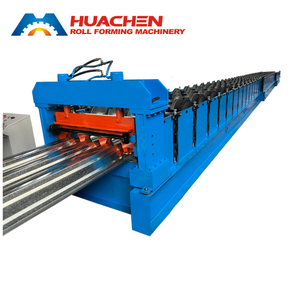

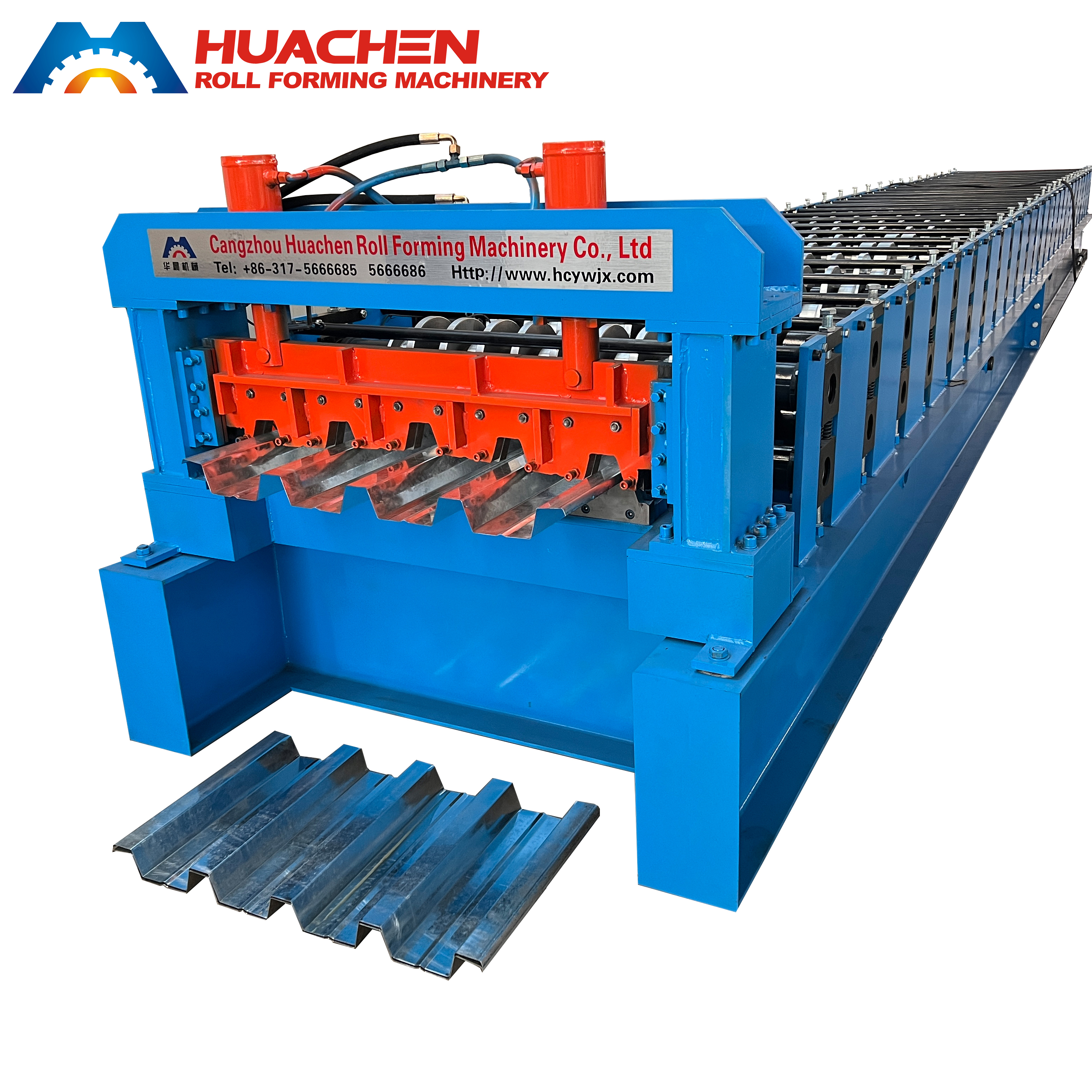

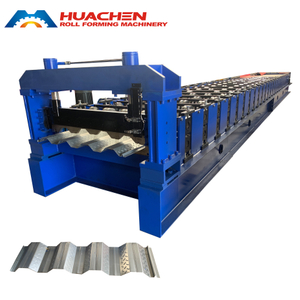

Metal Decking Rollformer

Working Flow

Main Technical Parameters

Material	Type	PPGI/GI
	Thickness	0.8-1.2mm
Roller Stations		26Stations
Roller & Shaft Material		45# Steel Quenching and Plating
Diameter of Shaft		Φ90mm
Cutter Material		CR12
Drive Type		Chain Drive
Speed		0-15m/min
Total Power		11+11+7.5KW
Voltage		380V 50Hz 3Phases

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

5T Manual Decoiler

This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

Feeding Table

Guide the coil come into the correct position and going to the roll forming part.

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Solenoid valve brand: Huade

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.
