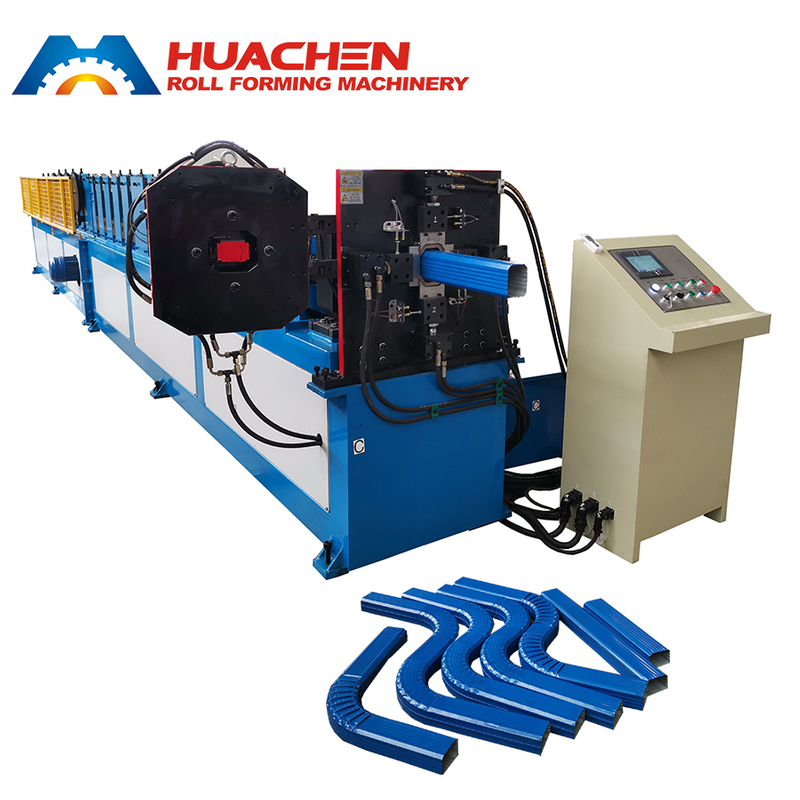

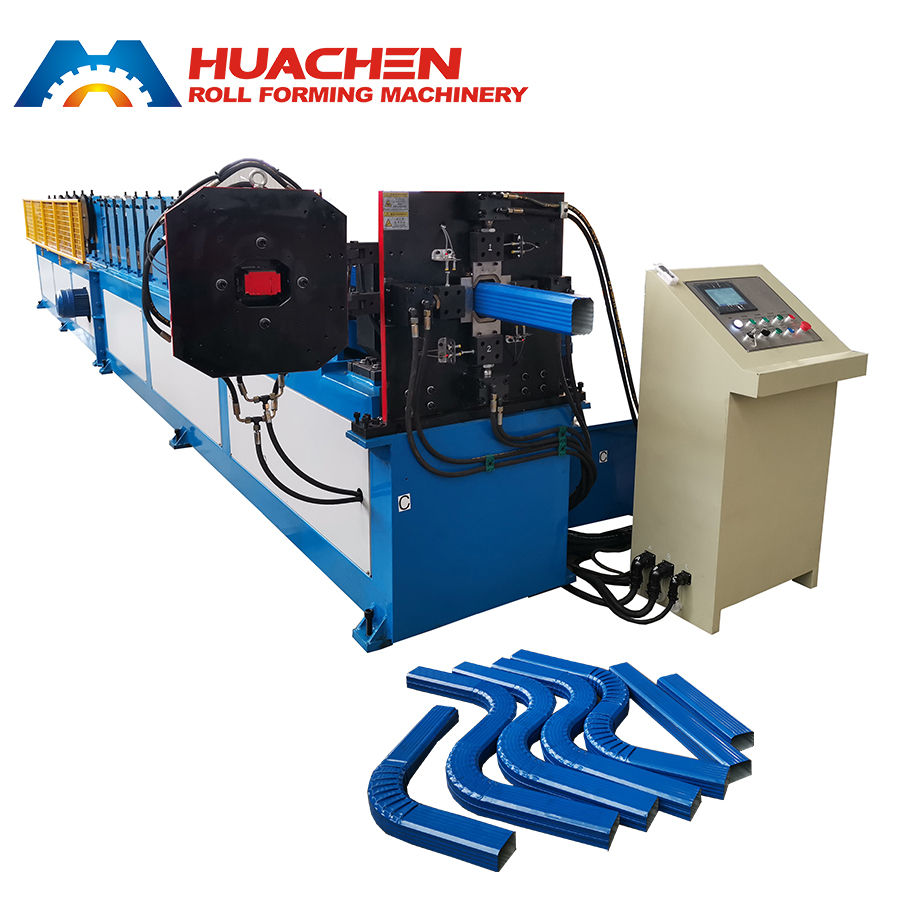

Rectangular Downpipe Roll Forming Machine

Main Technical Parameters

Component & Technical Parameters

Manual Decoiler

This part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 3T

Inner diameter: 470-530mm

(adjustable according to demand)

Shaft & Roller

Material is 45# Steel with Chrome Treatment.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Hydraulic Pump Station

It use 46# hydraulic oil.

The purpose of this pumping station is to control the cutter to start the cutting work.

Control Cabinet

The control cabinet has two modes, automatic and manual.

The unit length of the targeted sheet can be set in the control cabinet.

The system is simple and easy to operate.

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

End Shrink Device

Shrinking method: Four points shrink inward.

In order to put one tube into another.
